LC LED-N525TGLR2D: 5mm Green
& Red LED Lamp (145 Degree)
LC LED 5mm Green and Red LED Milky 145 Degree (Common
Anode)
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(4) Moisture &
UV Resistance Epoxy Len |
|
(2) Super Bright
Bi-Color Green & Red LED Lamp |
(5) Sun Light Viewable LED Lamp |
|
(3) Excellent color
mixing characteristics |
(6) Rugged design suitable for both indoor
& outdoor use |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current (1) |
45 |
mA |
|
Peak Pulse Forward Current (1) |
125 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Operating Temperature |
-40
to +100 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 3 seconds |
|
(1)
Pulse width of 1/10 duty and 0.1msec
width, for long operating life, max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage (Green) |
VF |
IF
= 25mA |
3.0 |
|
3.6 |
V |
|
Forward
Voltage (Red) |
VF |
IF
= 25mA |
1.8 |
|
2.1 |
V |
|
Reverse
Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant
Wavelength (Green) |
lD |
IF
= 25mA |
520 |
|
535 |
nm |
|
Dominant
Wavelength (Red) |
lD |
IF
= 25mA |
625 |
|
635 |
nm |
|
Viewing Angle |
2q1/2 |
IF
= 25mA |
|
145 |
|
Deg. |
|
Luminous
Intensity (Green) |
IV |
IF
= 25mA |
3,000 |
|
6,500 |
mcd |
|
Luminous
Intensity (Red) |
IV |
IF
= 25mA |
2,000 |
|
4,500 |
mcd |

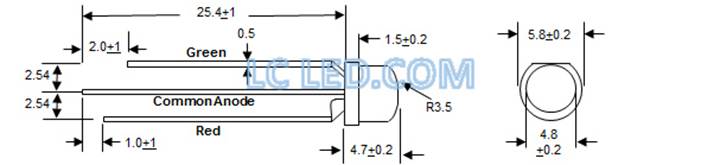

DEVICE DRAWING
|
LC LED Corporation |
